非晶纳米晶磁芯生产工艺流程

Amorphous and Nanocrystalline Ribbon Casting Maching



King Magnetics兴磁科技主要生产非晶、纳米晶磁芯。公司拥有自动化生产机器,包括自动绕带机,自动控温真空热处理炉,纵磁炉,横磁炉,切割机,装配机等一系列制造设备。

Alloy Melting

Melting Iron, Silicon, Boron, Nb, Copper to form the alloy.

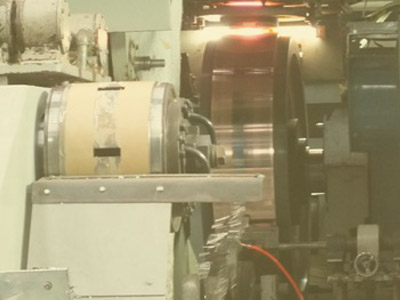

Ribbon Spinning

Alloy is remelted and quenched on a fast rotation copper wheel to form amorphous ribbon.

Ribbon Sliting

Wide amorphous ribbon will be slited to the width which core needs.

Core Winding

Slited scrip will be automatically wound to amorphous and nanocrytalline core.

Core Heat Treatment

Amorphous core under heat treatment to release stress to get good performance; Nanocrystalline core under heat treatment to form nanocrystalline grain and the best magnetic properties.

Core Finished

Heat treated core will be fixed to a plastic case or be under epoxy coated.

Core Inspection

All our amorphous and nanocrystalline cores will be 100% tested before shipping.
