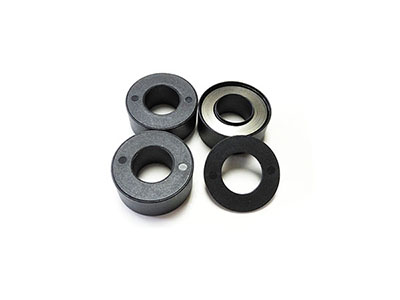

共模电感纳米晶磁环, KMN261610 (26x16x10 toroidal nano core)

nanocrystalline-core-kmn261610

Application: common mode choke, EMI filter

Finished type: plastic cased
Core material: Fe-based nanocrystalline

Bare core dimensions:
OD: 25.5mm
ID: 16mm
HT: 10mm

Case dimenstions:
OD: 28.4mm
ID: 13.9mm
HT: 13.0mm

AL Value:

AL: 44.6uH Min @ 10KHz, 0.25V (u≥60000)
AL: 8.9uH MIn @ 100KHz, 0.25V (u≥12000)
