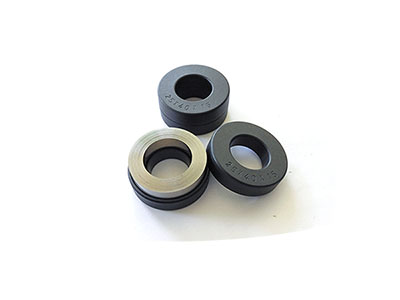

纳米晶环型磁芯,共模电感用,KMN402515 (40x25x15 toroidal nano core)

nanocrystalline-core-kmn402515

Application: common mode choke, EMI filter

Finished type: plastic cased
Core material: Fe-based nanocrystalline

Bare core dimensions:
OD: 40mm
ID: 25mm
HT: 15mm

Case dimenstions:
OD: 44.4mm
ID: 22.0mm
HT: 18.8mm

AL Value:

AL: 64.8uH Min @ 10KHz, 0.25V (u≥60000)
AL: 13.0uH MIn @ 100KHz, 0.25V (u≥12000)
